G1 Engine Monitor  For Carbureted Engines Only





Warning Warning  If you have a injected fuel system and planning or running lean of peak.

G2, 3 or 4 is a better choice.





The G1 GEM offers the basic monitoring features for EGT/CHT/TIT and CT (Carburetor Temperature) as the other G-series GEMs but not the advanced leaning features (that require real-time fuel flow data).



All EGT/CHT/TIT/CT data is continuously displayed in colour-coded bar-graph and numeric form, but neither mixture lean-of-peak (LOP) nor rich-of-peak (ROP) indication is provided. Leaning boxes do appear following peak-EGT events but the delta temperature number inside each leaning-box only shows the magnitude of temperature drop.



The LOP or ROP mixture status must be determined by the pilot by knowledge of which direction the mixture control was moved following a peak-EGT event. Moving the mixture control to increase fuel flow after finding peak EGT will result in a ROP condition, and moving the mixture to reduce fuel flow after finding peak EGT will result in a LOP condition.



Users of the G1 GEM should disregard references to GEM fuel flow indications in this manual. Similarly any feature that requires use of the rotary control knobs or user configuration screens is not available on the G1 GEM and should be disregarded.



G1

G1 is the first low cost complete color graphic engine monitor system available in aviation today.

G1      G1








G2, 3 or 4 is a better choice because you get:


Superior Patented Leaning Process:



  • G2/3/4 makes the lean process easy
  • No one else has this unique leaning process
  • G2/3/4 leaning is so easy and complete we patented the process - Read Patent

With patented features like:

  • Pilot settable lean threshold target
  • Colored box appears at peak
  • Lean boxes show temperature of how much lean or rich
  • Colored boxes show lean or rich
  • Lean boxes change at lean threshold
  • Fuel flow guidance for leaning
  • Fuel flow at each cylinder peak (GAMI SPREAD)
  • In-flight exhaust valve analysis
  • EGT temperature bars with numbers
  • CHT temperature bars with number, yellow warning and redline
  • TIT temperature bar with number, yellow warning and redline

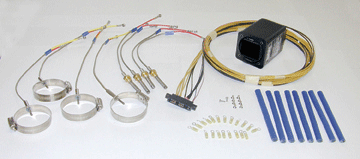

G1 Kit

Example of what's in a G1 4 cylinder kit.


Revolutionary New G1 Leaning Process



G1



Unparalleled ease of operation

As cylinders peak, boxes will appear on top of EGTs showing peak order and temperature spread.

Restarting The Leaning Process

Restart the leaning process and resetting the peak indications on G1 by short push of bottom button.


Built In G1 Probe Diagnosis Screen



G1





Continuous probe diagnostic

Confirm system integrity

Trouble shoot engine or a probe problem instantly



Functions
